Asme B16.9 Dn15-Dn2000 304/304l Petroleum Seamless Round Stainless Steel End Cap Caps for Tubing Pipe

Name: Asme B169 Dn15Dn2000 304304l Petroleum Seamless Round Stainless Steel End Cap Caps for Tubing Pipe
Brand: YUHAO
Price: 1 USD

Brand Name : YUHAO

Model Number : Butt Weld Pipe Fittings

Certification : ASTM, AISI, GB, DIN, JIS

Place of Origin : China

MOQ : 100kgs

Price : Negotiation

Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability : 2000tons/per month

Delivery Time : 15days

Packaging Details : Standard sea worth bundles,Standard Plywood cases

End Type : Beveled

Wall Thickness : SCH5S, SCH10S, SCH20S, SCH40S, SCH80, SCH160

Standard : ASTM A403, ASTM A815, ASTM A234

Surface Finish : Polished, Rolled Sand, Pickling

Material : 304 304L 316 316L

Pipe Fitting Type : Cap

Connection Type : Butt Welded

Application : Oil, Gas, Chemical, Petrochemical, Power, Industrial Piping, Medical Equipment

Dimensions : DN5-DN1200

Size : 1/2' ~ 48'

Usage : Pipeline Connection

Contact Now

Asme B16.9 Dn15-Dn2000 304/304l Petroleum Seamless Round Stainless Steel End Cap Caps for Tubing Pipe

►Products Description

Our stainless steel butt welded end caps are precision-engineered to provide secure and reliable termination for critical piping systems. Manufactured from premium 304/316/316L stainless steel, these end caps deliver:

Complete System Integrity: Hermetic sealing for pipe ends to prevent contamination and pressure loss
Exceptional Corrosion Resistance: Withstands aggressive media including acids, alkalis, and high-temperature fluids
Perfect Weldability: Precisely machined beveled ends ensure flawless butt-welded connections
Pressure-Rated Performance: Designed to meet ASME B16.9 standards for demanding applications

Manufacturing Superiority:
As a trusted manufacturer with decades of experience, we offer:

Advanced Production Capabilities:

CNC-controlled forming and machining processes
Automated orbital welding with argon backing
Full-spectrum material testing and certification

Uncompromising Quality Standards:

100% material traceability with Mill Test Certificates
Dimensional accuracy verified to ±0.1mm tolerance
Optional hydrostatic and NDT testing services

Inventory & Supply Chain Strength:
Our massive inventory ensures immediate project readiness:

Extensive Size Range: 1/2" to 48" available ex-stock
Complete Wall Thickness: SCH 10S through SCH XXS
Custom Solutions: Special materials (Duplex, Super Duplex) and finishes (EP, MP) available

Our stainless steel butt welded end caps provide the perfect combination of reliability, performance, and value for your critical piping systems. Contact our sales team today for immediate quotations and expert application guidance.

►Industry-specific attributes

Place of Origin	China
Brand name	Yuhao
Connectivity	Welding
Size	DN15-DN2400(1/2"-48")
Wall thickness	SCH 5s-SCH XXS
customized Support	ASTM DIN EN BS JIS GOST etc.
Surface treatment	Sand blasting, Roll blasting, Pickled or Polished
Material	304 304L 316 316L
Pressure	High Pressure
Packing	Cartons, Pallet, Cases

►Product Size

DN	NPS	OD	Nominal Wall Thickness
DN	NPS	OD	Schss	Sch10S	Sch405	Sch8os	Sch10	Sch20	Sch30	STD	Sch40	Sch60	XS
6	1/8	10.3	-	1.24	1.73	2.41	-	-	-	1.73	1.73	-	2.41
8	1/4	13.7		1.65	2.24	3.02	-	-	-	2.24	2.24	-	3.02
10	3/8	17.1	-	1.65	2.31	3.2	-	-	-	2.31	2.31	-	3.2
15	1/2	21.3	1.65	2.11	2.77	3.73	-	-	-	2.77	2.77	-	3.73
20	3/4	26.7	1.65	2.11	2.87	3.91	-	-	-	2.87	2.87	-	3.91
25	1	33.4	1.65	2.77	3.38	4.55	-	-	-	3.38	3.38	-	4.55
32	1 1/4	42.2	1.65	2.77	3.56	4.85	-	-	-	3.56	3.56	-	4.85
40	1 1/2	48.3	1.65	2.77	3.68	5.08	-	-	-	3.68	3.68	-	5.08
50	2	60.3	1.65	2.77	3.91	5.54	-	-	-	3.91	3.91	-	5.54
65	2 1/2	73	2.11	3.05	5.16	7.01	-	-	-	5.16	5.16	-	7.01
80	3	88.9	2.11	3.05	5.49	7.62	-	-	-	5.49	5.49	-	7.62
90	3 1/2	101.6	2.11	3.05	5.74	8.08	-	-	-	5.74	5.74	-	8.08
100	4	114.3	2.11	3.05	6.02	8.56	-	-	-	6.02	6.02	-	8.56
125	5	141.3	2.77	3.4	6.55	9.53	-	-	-	6.55	6.55	-	9.53
150	6	168.3	2.77	3.4	7.11	10.97	-	-	-	7.11	7.11	-	10.97
200	8	219.1	2.77	3.76	8.18	12.7	-	6.35	7.04	8.18	8.18	10.31	12.7
250	10	273	3.4	4.19	9.27	12.7	-	6.35	7.8	9.27	9.27	12.7	12.7
300	12	323.8	3.96	4.57	9.53	12.7	-	6.35	8.38	9.53	10.31	14.27	12.7
350	14	355.6	3.96	4.78	-	-	6.35	7.92	9.53	9.53	11.13	15.09	12.7
400	16	406.4	4.19	4.78	-		6.35	7.92	9.53	9.53	12.7	16.66	12.7
450	18	457	4.19	4.78	-	-	6.35	7.92	11.13	9.53	14.27	19.05	12.7
500	20	508	4.78	5.54	-	-	6.35	9.53	12.7	9.53	15.09	20.62	12.7

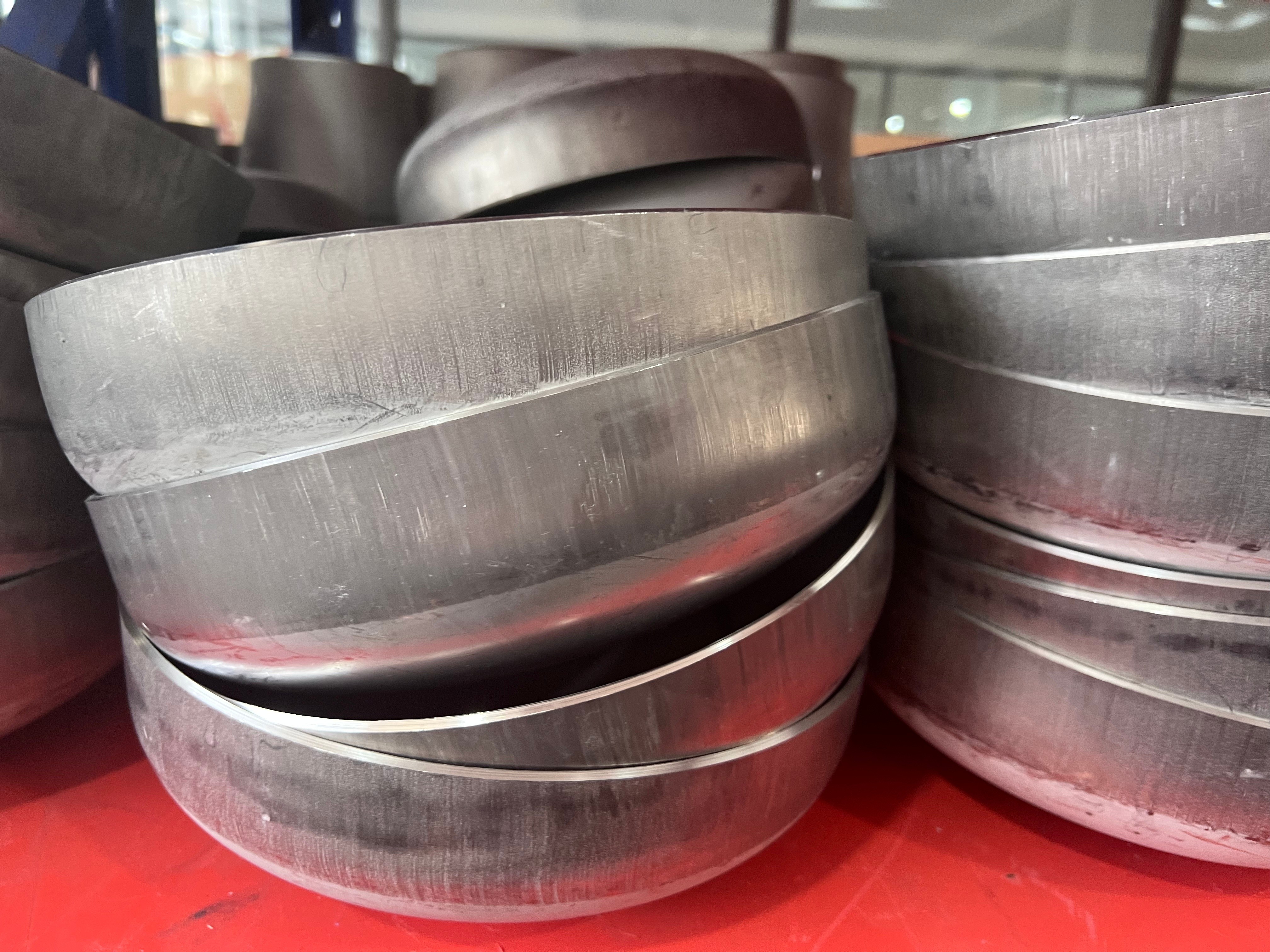

►Shot Shoot

Asme B16.9 Dn15-Dn2000 304/304l Petroleum Seamless Round Stainless Steel End Cap Caps for Tubing Pipe

►FAQ

Q1: What is your minimum order quantity?

A: The MOQ for each product is different, so it would be recommended to refer to the detail page of the product you are interested in. If you need further clarification, send me the product link, and I will reply as soon as possible.

Q2: Can I customize products?

A: Yes. Let me know the specific customization requirements, and I will get back to you as soon as possible.

Q3: Do you provide samples ? Is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q4: How long is your production lead time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q5: How is the quality about the products?

A: Quality is priority. We pay much attention to the quality check. Every product will be fully assembled and carefully tested before it's packed for shipment.
