Sch5-SCH160 Stainless Steel Butt Welded Fittings Sand Rolled SS Concentric Reducer

Brand Name : Yuhao

Model Number : Butt Weld Pipe Fittings

Certification : ASTM, AISI, GB, DIN, JIS

Place of Origin : China

MOQ : 100kgs

Price : Negotiation

Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability : 2000tons/per month

Delivery Time : 15days

Packaging Details : Standard sea worth bundles,Standard Plywood cases

Wall Thickness : Sch5-SCH160

Standard : ASTM, AISI, GB, DIN, JIS

Surface Finish : Polished, Brushed, Matte, Sandblasted

Material : 304, 316, 316L, 304L

Pipe Fitting Type : Concentric reducer

Connection Type : Butt Welded

Application : Oil, Gas, Chemical, Petrochemical, Power, Industrial Piping, Medical Equipment, Shipbuilding

Diameter Range : DN15-DN1200

Corrosion Resistance : High Corrosion Resistance

Size : 1/2" up to 110"

Contact Now

DN25 to DN800 Stainless Steel Butt Welded Fittings Sand Rolled SS Concentric Reducer


►Products Description

Our ​​Stainless Steel Butt Welded Concentric Reducer​​ provides a seamless transition between pipe diameters, ensuring optimal flow efficiency in high-performance piping systems. Manufactured from premium-grade stainless steel (304, 316, 316L), this reducer delivers exceptional corrosion resistance, durability, and structural integrity for demanding applications across oil & gas, chemical processing, power generation, and water treatment industries.


​​Key Product Advantages:​​

  • ​​Precision Flow Control:​​ The concentric design maintains a uniform centerline, minimizing turbulence and pressure drop for enhanced system efficiency.
  • ​​Robust Construction:​​ Fabricated to ​​ASME B16.9, ANSI, and ASTM standards​​, our reducers feature high-quality butt-welded ends for leak-proof, high-pressure performance.
  • ​​Material Excellence:​​ Available in ​​SCH 10S, SCH 40, SCH 80, and custom schedules​​, with optional surface treatments for specialized applications.


​​Manufacturing Excellence & Supply Chain Strength​​. As an industry-leading manufacturer, we combine ​​state-of-the-art production facilities​​ with rigorous quality control to deliver fittings that exceed international standards. Our ​​extensive inventory​​ of standard and specialized sizes ensures immediate availability, significantly reducing lead times for critical projects.


►Industry-specific attributes

Place of Origin China
Brand name Yuhao
Connectivity Welding
Size 1/2" up to 110"
Wall thickness SCH 5s-SCH XXS
customized Support ASTM DIN EN BS JIS GOST etc.
Surface treatment Sand blasting, Roll blasting, Pickled or Polished
Type Concentric, Eccentric
Pressure High Pressure
Packing Cartons, Pallet, Cases


►Product Size

DN NPS OD Nominal Wall Thickness
Schss Sch10S Sch405 Sch8os Sch10 Sch20 Sch30 STD Sch40 Sch60 XS
6 1/8 10.3 - 1.24 1.73 2.41 - - - 1.73 1.73 - 2.41
8 1/4 13.7
1.65 2.24 3.02 - - - 2.24 2.24 - 3.02
10 3/8 17.1 - 1.65 2.31 3.2 - - - 2.31 2.31 - 3.2
15 1/2 21.3 1.65 2.11 2.77 3.73 - - - 2.77 2.77 - 3.73
20 3/4 26.7 1.65 2.11 2.87 3.91 - - - 2.87 2.87 - 3.91
25 1 33.4 1.65 2.77 3.38 4.55 - - - 3.38 3.38 - 4.55
32 1 1/4 42.2 1.65 2.77 3.56 4.85 - - - 3.56 3.56 - 4.85
40 1 1/2 48.3 1.65 2.77 3.68 5.08 - - - 3.68 3.68 - 5.08
50 2 60.3 1.65 2.77 3.91 5.54 - - - 3.91 3.91 - 5.54
65 2 1/2 73 2.11 3.05 5.16 7.01 - - - 5.16 5.16 - 7.01
80 3 88.9 2.11 3.05 5.49 7.62 - - - 5.49 5.49 - 7.62
90 3 1/2 101.6 2.11 3.05 5.74 8.08 - - - 5.74 5.74 - 8.08
100 4 114.3 2.11 3.05 6.02 8.56 - - - 6.02 6.02 - 8.56
125 5 141.3 2.77 3.4 6.55 9.53 - - - 6.55 6.55 - 9.53
150 6 168.3 2.77 3.4 7.11 10.97 - - - 7.11 7.11 - 10.97
200 8 219.1 2.77 3.76 8.18 12.7 - 6.35 7.04 8.18 8.18 10.31 12.7
250 10 273 3.4 4.19 9.27 12.7 - 6.35 7.8 9.27 9.27 12.7 12.7
300 12 323.8 3.96 4.57 9.53 12.7 - 6.35 8.38 9.53 10.31 14.27 12.7
350 14 355.6 3.96 4.78 - - 6.35 7.92 9.53 9.53 11.13 15.09 12.7
400 16 406.4 4.19 4.78 -
6.35 7.92 9.53 9.53 12.7 16.66 12.7
450 18 457 4.19 4.78 - - 6.35 7.92 11.13 9.53 14.27 19.05 12.7
500 20 508 4.78 5.54 - - 6.35 9.53 12.7 9.53 15.09 20.62 12.7


►Shot Shoot

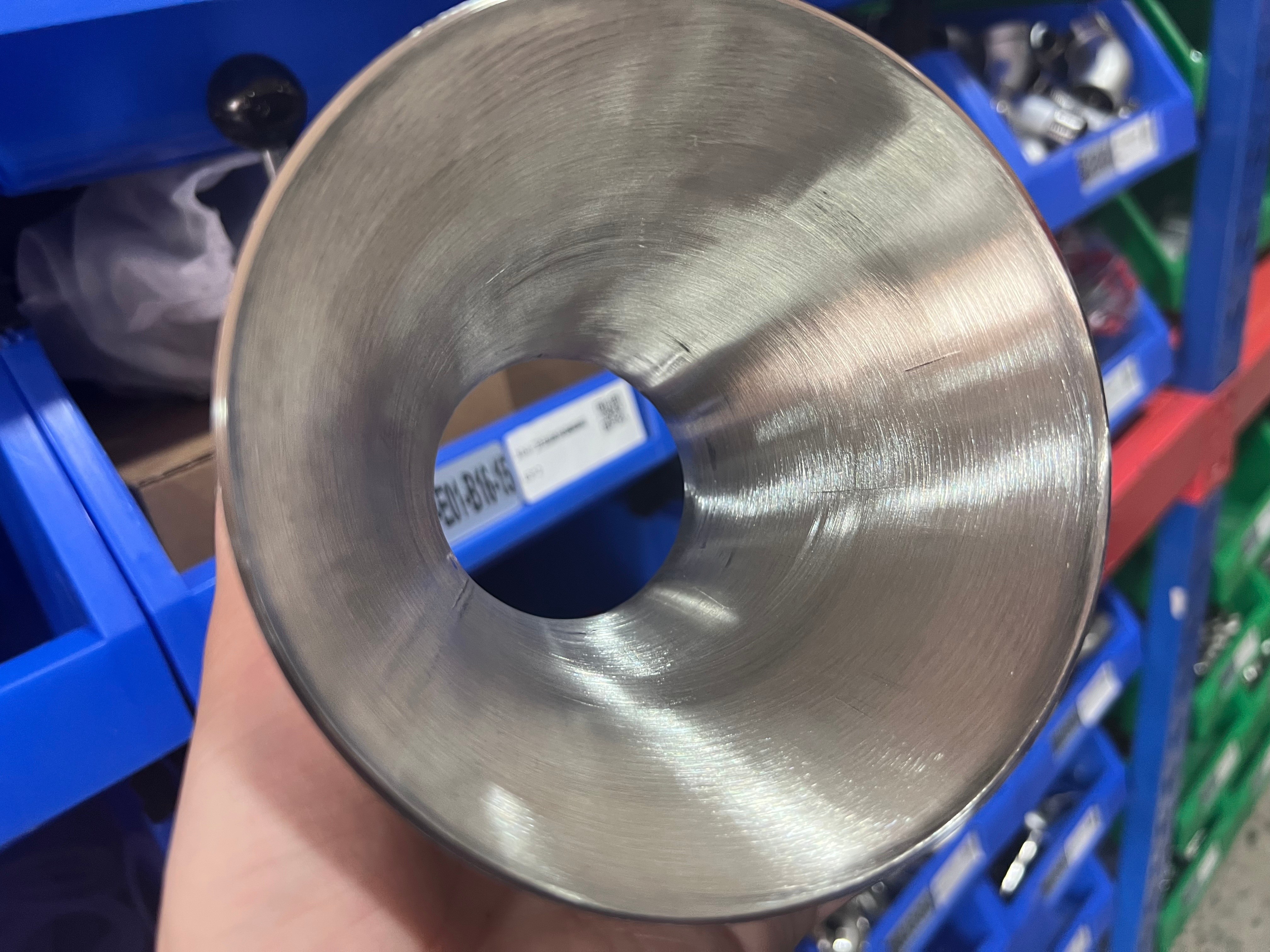

Sch5-SCH160 Stainless Steel Butt Welded Fittings Sand Rolled SS Concentric Reducer

Sch5-SCH160 Stainless Steel Butt Welded Fittings Sand Rolled SS Concentric Reducer

Sch5-SCH160 Stainless Steel Butt Welded Fittings Sand Rolled SS Concentric Reducer


►FAQ

Q1: How is the quality?

A: Quality is priority. We pay much attention to the quality check. Every product will be fully assembled and carefully tested before it's packed for shipment.

Q2: What is your minimum order quantity?

A: The MOQ for each product is different, so it would be recommended to refer to the detail page of the product you are interested in. If you need further clarification, send me the product link, and I will reply as soon as possible.

Q3: Can I customize products?

A: Yes. Let me know the specific customization requirements, and I will get back to you as soon as possible.

Q4: Do you provide samples ? Is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q5: How long is your production lead time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
